Yagona kanalli RFID o'quvchi moduli UHF radio chastotasini identifikatsiyalash mobil telefon kompyuteri o'rnatilgan UHF kartani o'qish moduli

Yagona kanalli RFID o'quvchi moduli UHF radio chastotasini identifikatsiyalash mobil telefon kompyuteri o'rnatilgan UHF kartani o'qish moduli

Mahsulot hajmi: 88,4 mm * 60,4 mm
Ish chastotasi: 840 ~ 960 MHz
Ish shartnomasi: IOS18000-6C shartnomasi
Ish rejimi: faol rejim, passiv rejim, tetik rejimi
Chastotani sakrash rejimi: keng spektrli chastotali sakrash (FHSS) yoki dasturiy ta'minot tomonidan o'rnatilishi mumkin bo'lgan sobit chastota
Aloqa interfeysi: WG26/34, RS232/485 aloqasini qo'llab-quvvatlash
Kartani o'qish quvvati: -2 ~ 25dBm sozlanishi
Kartani o'qish masofasi: antennaga / tegga bog'liq
Ish bo'yicha maslahatlar: Buzzer
Quvvat iste'moli: maksimal quvvat 1 Vt dan kam

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module2

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module3

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module4

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module5

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module6

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module7

Single-channel RFID reader module UHF radio frequency identification mobile phone computer embedded UHF card reader module8

Brief introduction
Integrated antenna character
1. Be sensitive and stable to the tags identify.
2. Stable reading distance 2-3 meters.
3. Multi-tags identify, >50pcs tags.
4. Reading distance speed, >50pcs/sec.

Solve the exothermic problem completely
1. No need for connecting any other outer radiating device. It can work without exothermic reaction in the normal indoor temperature.
2. Sustain electricity<200mA @ 3.5V (26 dBm Output). Pulse peak current<260mA.

Outstanding stability:
1. 24 hours x 365days work normally.
2. Appearance little influenced by cover, electromagnetic environment etc.
3. Wide temperature design and the temperature drift coefficient.

Good consistency:
1.the good design in consistency.
2. Choose the top level components to keep each parameters stable and consistence.

Brief and high efficient interface of hardware and software.
1. Peripheral circuit is very easy. The signal power, no need for extra connecting tantalum capacitor.

Installation method:
support 5pin WAFER installation.

Interface board connector
5P/15P/20P FPC connector
RS232

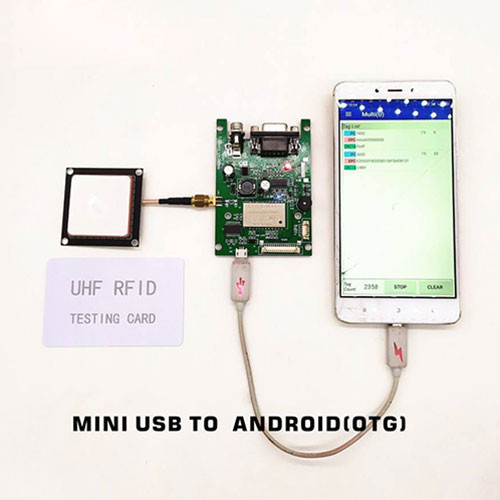

MINI USB

Product Parameters

Module Specification
Work frequency	865-868MHz(EU frequency) or 902-928MHz(US frequency)
Protocol Support	ISO18000-6C / EPC C1 GEN2
RF Power Output	0-25dBm
Standby current	<80mA(EN pin high level)
Sleeping current	<100uA(EN pin low level)
Operation current	180mA @3.5V(26dBm output, 25℃)110mA @ 3.5V (18 dBm Output,25°C).
Operating time	<100mS.
Operation temp.	- 20 °C - + 70 °C
Storage temp.	- 20 °C - + 85 °C
Working humidity	< 95% ( + 25 °C)
Output power	0-25 dBm
Read/write range	Read: 200-250cm;write: 10-50cm(adjusted)
Output power accuracy	+/- 1dB
Output power flatness	+/- 0.2dB
Receive sensitivity	< -70dBm
Tags storage capacity	200pcs tags @ 96 bit EPC
Tags RSSI	Support
Communication interface	TTL Uart interface
Communication baud rate	115200 bps(default and recommend) 38400bps
Heat-dissipating method	Air cooling(no need for out install cooling fin)
Interface board Specification
interface	RS232, MINI USB, 5P/12P/15P/20P FPC connector
Power input	DC 9-12V 3A
Board size	90x60x15mm
